8-0030 - Four-Axis Motorized System

Preis auf Anfrage



  • 644618471
  • RoHS konform
  • 9031908590/LT
Four-Axis Motorized System System consists of the following items: 8MTF-75LS1-En1 - XY... mehr
Produktinformationen "8-0030 - Four-Axis Motorized System"

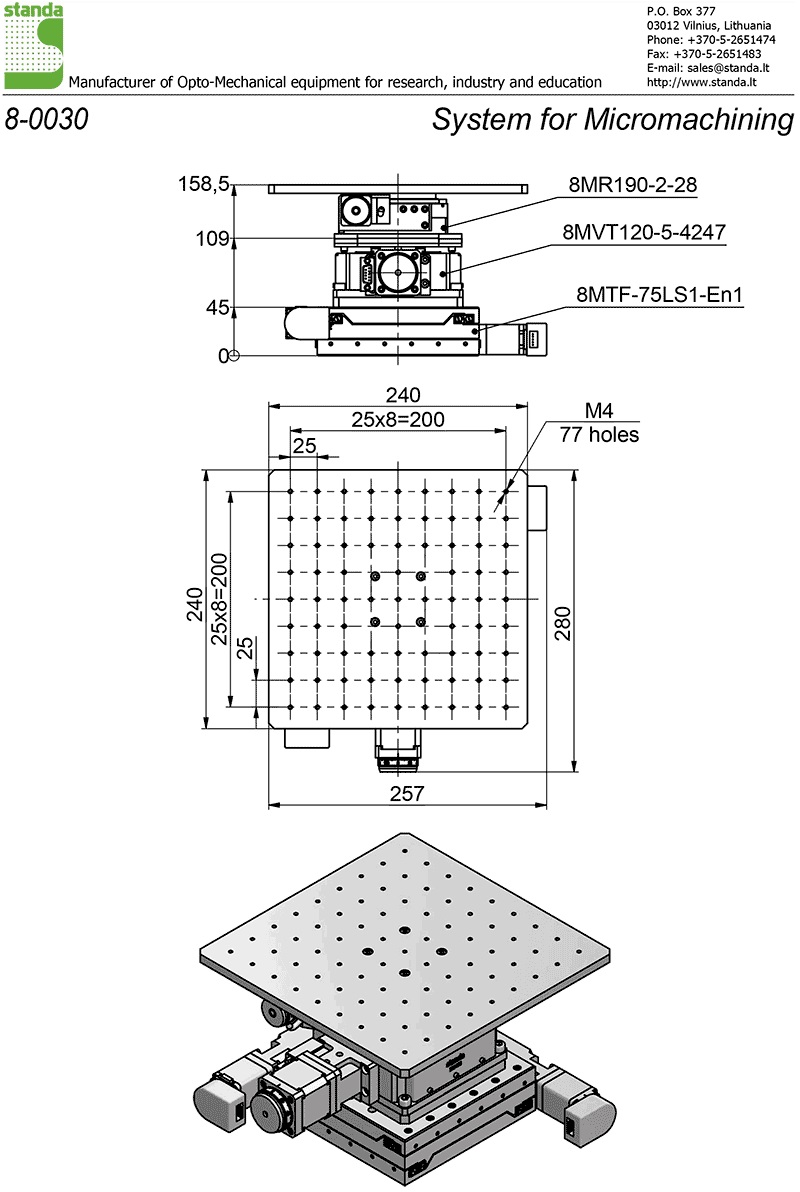

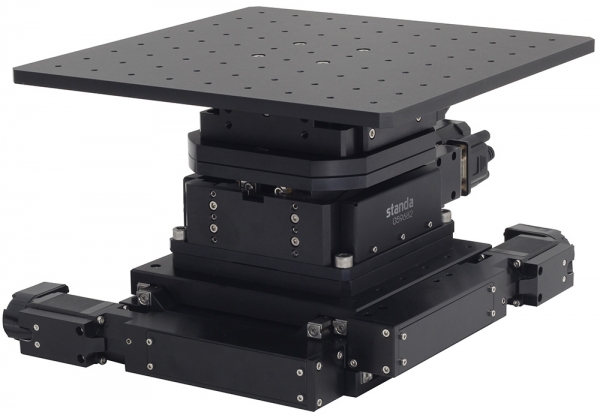

Four-Axis Motorized System

System consists of the following items:

8MTF-75LS1-En1 - XY translation 75x75 mm

8MTF-75LS05-MEn1 (equivalent to  ~LS1, lead screw pitch 1 mm)


8MVT120-5-4247 - Z translation 5 mm

8MVT120-5-4247


8MR190-2-28 - Y rotation 360° continuous

8MR190-2-28


connecting plate for 8MTF-75LS05 and 8MVT120-5-4247
connecting plate for 8MVT120-5-4247 and 8MR190-2-28
aliuminium breadboard sized as 240 x 280 x 15 mm

Maximum load capacity 7 kg
Encoder resolution 1000 CPR
