8MR174V-11-VSS42-VC15F-FT - Motorisierter Rotationstisch

8MR174V-11-VSS42-VC15F-FT

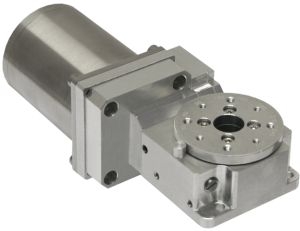

Vacuum Compatible Motorized Rotation Stage

Specifications
Rotation Range 360°
Resolution in full step 0.9° (0.015 arcmin)
Uni-directional Repeatability 0.4 arcmin
Bi-directional Repeatability 1.6 arcmin
Max. rotation speed 50°/s (36V) 20°/s (12V)
Wobble 1 arcmin
Eccentricity 10 µm
Load capacity
Horizontal 4 kg
Radial 1.5 kg
Torque 0.5 Nm
Integrated cable vacuum compatible 1.6 m length
Motor connector HDB15(M)
Stepper motor VSS42
Weight 0.45 kg
Snap-action limit switch Pushed is "closed
