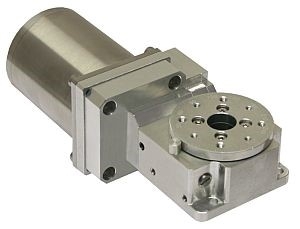

8MR174V-11-VSS42-VC9M-FT - Rotationstisch motorisiert

2.360,00 € *

zzgl. MwSt. zzgl. Versandkosten

Lieferzeit ca. > 7 Tage

  • 644616902
  • 9031908590/LT
8MR174V-11-VSS42-VC9M-FT Vacuum Compatible Motorized Rotation Stage With 9 pin male Sub-D... mehr
Produktinformationen "8MR174V-11-VSS42-VC9M-FT - Rotationstisch motorisiert"

8MR174V-11-VSS42-VC9M-FT

Vacuum Compatible Motorized Rotation Stage
With 9 pin male Sub-D vacuum compatible connector cable 1,5m fixed on motor

Specification
Rotation Range 360°
Resolution in full step 0.9° (0.015 arcmin)
Uni-directional Repeatability 0.4 arcmin
Bi-directional Repeatability 1.6 arcmin
Max. rotation speed 50°/s (36V) 20°/s (12V)
Wobble 1 arcmin
Eccentricity 10 µm
Load capacity
Horizontal 4 kg
Radial 1.5 kg
Torque 0,5 Nm
Stepper motor VSS42
Weight 0.45 kg
Snap-action limit switch Pushed is "closed
