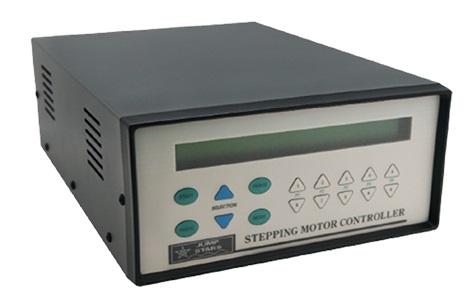

8CTO-2-2-F20-220 - Schrittmotor Controller 2 Kanal

1.990,00 € *

zzgl. MwSt. zzgl. Versandkosten

Lieferzeit ca. > 7 Tage

  • 644618484
  • RoHS konform
  • 9031908590/TW
Specification: 1.       Communication Speed... mehr
Produktinformationen "8CTO-2-2-F20-220 - Schrittmotor Controller 2 Kanal"

Specification:

1.      Communication Speed

·      10/100M Ethernet (Default 100M)

·      115.2K RS232 (Default115.2K)

2.      Control function A. 1 to 4 Channel

·         Encoder return speed 12MHz

·         Pulse Speed2M p/s



3.      Movement mode:

·         Point to Point /Line interpolation /Circular interpolation
/continuous path movement

·      Can Change Acceleration and Deceleration

·      Can Change Speed

·      Can change acceleration curve to avoid the jerk

4.      Hardware:

·      Displacement range +/-2G Counts/Move

·      Speed range 10M Counts/sec

·      Acceleration range 2K~500M

·      Step Pulse Speed 2 MHz

·      Resolution –Up to 25000 (Default 10000)

·      Interface C# and LabVIEW

·      System -2 phase Step motor

·      Input: 100-120 VAC 6.8A / 200-240VAC 3.4A

·      Outside Dimensions W =35cm L=24cm H=9cm

·      Motor Control Connection port: D-Sub 25 Pin

·      PC Control Connection port: D-Sub 9Pin X1 : Network interface

·      Encoder Differential Signal A+/A-/B+/B-/Z+/Z-

·      Limit Switch X2 Origin Switch X1

·      Can set up the software limit
