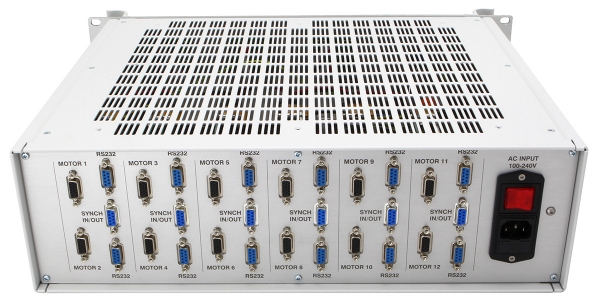

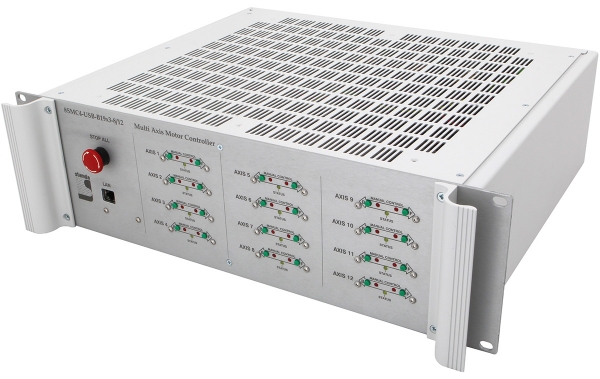

8SMC5-Ethernet/RS232-B19x3-12 - Controller

6.886,00 € *

zzgl. MwSt. zzgl. Versandkosten

Lieferzeit ca. > 7 Tage

  • 644619222
8SMC5-Ethernet/RS232-B19x3-12 Multi-Axis Motion Controller / Driver Axis: 12... mehr
Produktinformationen "8SMC5-Ethernet/RS232-B19x3-12 - Controller"

Multi-Axis Motion Controller / Driver
Axis: 12


Number of axes12
Motor parameters
   Motor typestepper/dc/servo
      Stepper motor0,1- 3 A
      DC, servo0,1- 6 A
Motor kinematics
   Step division (for stepper motor)1-1/256
   Maximum speed
      Stepper motor35000 steps/s
      DC, servo800000 counts/s
Motion control
   Motion modesmove left/right, move to point, shift on delta, continuous speed,
acceleration and deceleration ramps, backlash compensation mode,
automatic home position calibration mode,
linear interpolation, circular interpolation
   Control loopOpen loop, closed loop (PID regulation)
   Backlash compensationIncluded
   Step loss compensationIncluded
Positioner sensors reading
   Encoder (linear, rotary)Incremental quadrature encoder
   Limit switchesoptron, hall sensor, microswitch
   Revolution sensorsupported
Communication interfaceEthernet, RS232
   SynchronizationI/O included ,TTL Synchronization I/O
   Output+3V; +5V for power supplying
Motor connectorDB15F
Position counter40 bit
Positioner identificationOne-wire interface (for Standa positioners only)
ProtectionsESD protection, Current overload protection, Voltage overload protection,
Short circuit protection, Motor hot plug/unplug protection
Operating temperatureUp to 70 degrees C
LED indicationIncluded
Operating systemCompatible with Windows XP/Vista/7/8/10, Linux, Mac OS
ProgrammingC++, C#, .NET, Delphi, Visual Basic, gcc, Xcode, Matlab, Java, LabVIEW.
Power parameters
   Power supply100-240V, 50-60Hz, 10A
