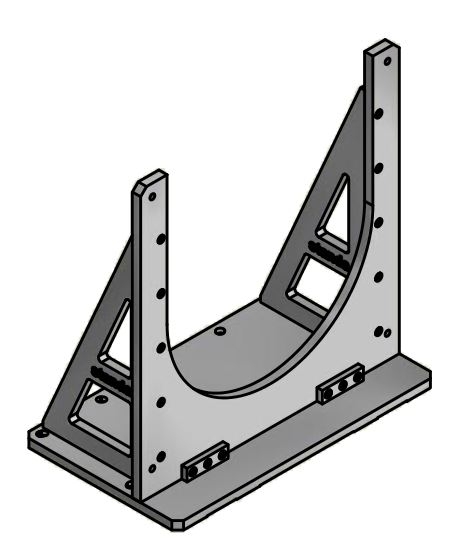

2AB450-350 - Right-Angle Bracket

Produktinformationen "2AB450-350 - Right-Angle Bracket"

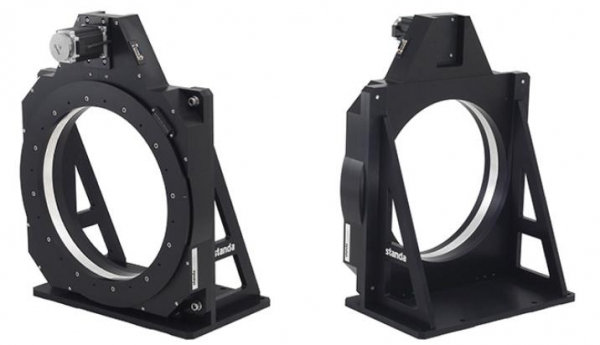

Winkelhalterung für mororisierten Rotationstisch 8MRB450-350-60



Bem: kann auch mit für andere Winkel angefertigt werden.




Produktgalerie überspringen

Passende Produkte

8MRB450-350-60 - Rotationstisch motorisiert

Motorisierter "Large Aperture" RotationstischSpezifikationenAntriebBelt drive 1:12.5Clear aperture 350 mm (13,77")Rotationsbereich360°AuflösungVollschritt  8,64'1/8 Schritt 64,8''WiederholbarkeitUni-direktional 0° 01‘ 30‘‘Bi-direktional   0° 02‘ 00‘‘Genauigkeit0° 04‘ 00‘‘Wobble0° 00‘ 50‘‘Maximangeschwindigkeit53 U/minBelastbarkeitAxial   150 kgRadial 150 kgDrehmoment230 NmMotoranschlussDB9(M)Endschalter (home)Hall-SensorReferenzschalter1 Optokoppler,pushed is closedAnschlussleitung1,6 mGewicht17,6 kgMotor2-Phasen Schrittmotor, bipolarModel6018Spannung3,9 VPhasenstrom2,12 APhasenwiderstand2,6±15% OhmInduktivität12,8±20% mHSchrittmoment75 mNmHaltemoment3,54 NmSchritte / Umdr.200 (1.8°)Vakuum kompatible Ausführung ( bis 10-3 mbar) verfügbar!Empfohlener Treiber: 8SMC5-USB

Preis auf Anfrage
