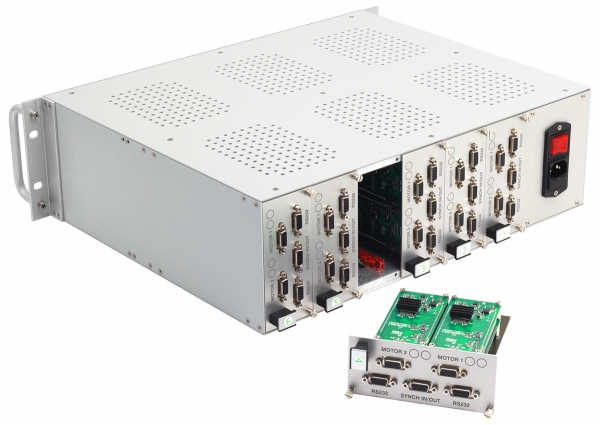

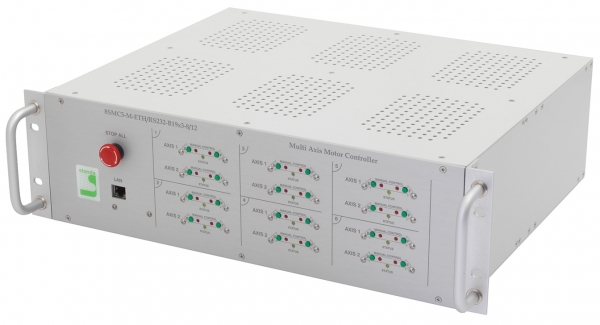

8SMC5-M-ETH/RS232-B19x3-10 - Controller

Produktinformationen "8SMC5-M-ETH/RS232-B19x3-10 - Controller"

10-Achsen Ethernet/RS232 Motor-Controller/Driver



  • Hot-Swap-Technologie
  • Kompatibel mit Schritt- und Gleichstrommotoren
  • Mehrachsiger Schrittmotor DC Motion Controller Ethernet/RS232
  • Digital-Encoder-Eingang: Open & Closed Loop Control
  • Positionsdiagnose, Präzise Home-Positionierung, Schrittverlustkompensation,
    Spielausgleich, TTL-Synchronisations-E/A
  • Tango, FESA-kompatibel
  • Kompatibel mit Windows XP/Vista/7/8/10, Linux, Mac OS
  • Codebeispiele für Visual Basic, C, C#, C++, Matlab, Labview, Python
  • Benutzerfreundliche XILab-Schnittstelle (Software inklusive)
  • Gebrauchsfertige Konfigurationsdateien für Standa-Stages
  • Speichern von Dateien und Arbeitsbereich in Flash/Datei
  • Manuelle Steuertasten für jede Achse
  • Status-LEDs
  • Programmierbarer INTERLOCK-Notschalter
  • Kompatibel mit Standard 19" Schränken



Spezifikationen

Anzahl unterstützter Motorachsen8, 10, 12
MotortypenStepper/DC/Servo
Motorstrom

Schrittmotoren: 0,1- 3 A

DC, Servos: 0,1- 6 A

Motorspannung2-36 V
Mikroschrittmodus (Schrittmotor)1 - 1/256
Geschwindigkeiten

Schrittmotoren: 35000 steps/s

DC, Servo: 800000 counts/s

Motion modesmove left/right, move to point, shift on delta, continuous speed,
acceleration and deceleration ramps, backlash compensation mode,
automatic home position calibration mode,
linear interpolation, circular interpolation
Control loopOpen loop, closed loop (PID regulation)
Backlash KompensationInklusive
Step loss KompensationInklusive
Encoder (linear, rotary)Incremental quadrature encoder
EndschalterOptronisch, Hall Sensor, Mikroschalter
KommunikationsinterfaceEthernet, RS232
Revolution SensorUnterstützt
SynchronizationI/O inklusive
Ausgänge für Sensor Stromversorgung+3V; +5V
MotoranschlüsseDB15F
Position Counter40 bit
Positioner identificationOne-wire interface (for Standa positioners only)
Schutzvorrichtungen

ESD protection, Current overload protection, Voltage overload protection,

Short circuit protection, Motor hot plug/unplug protection

ArbeitstemperaturBis 70°C
LED AnzeigenInklusive
ProgrammierbarkeitC++, C#, .NET, Delphi, Visual Basic, gcc, Xcode, Matlab, Java, LabVIEW, Python.
Versorgungsspannung100-240V, 50-60Hz, 10A

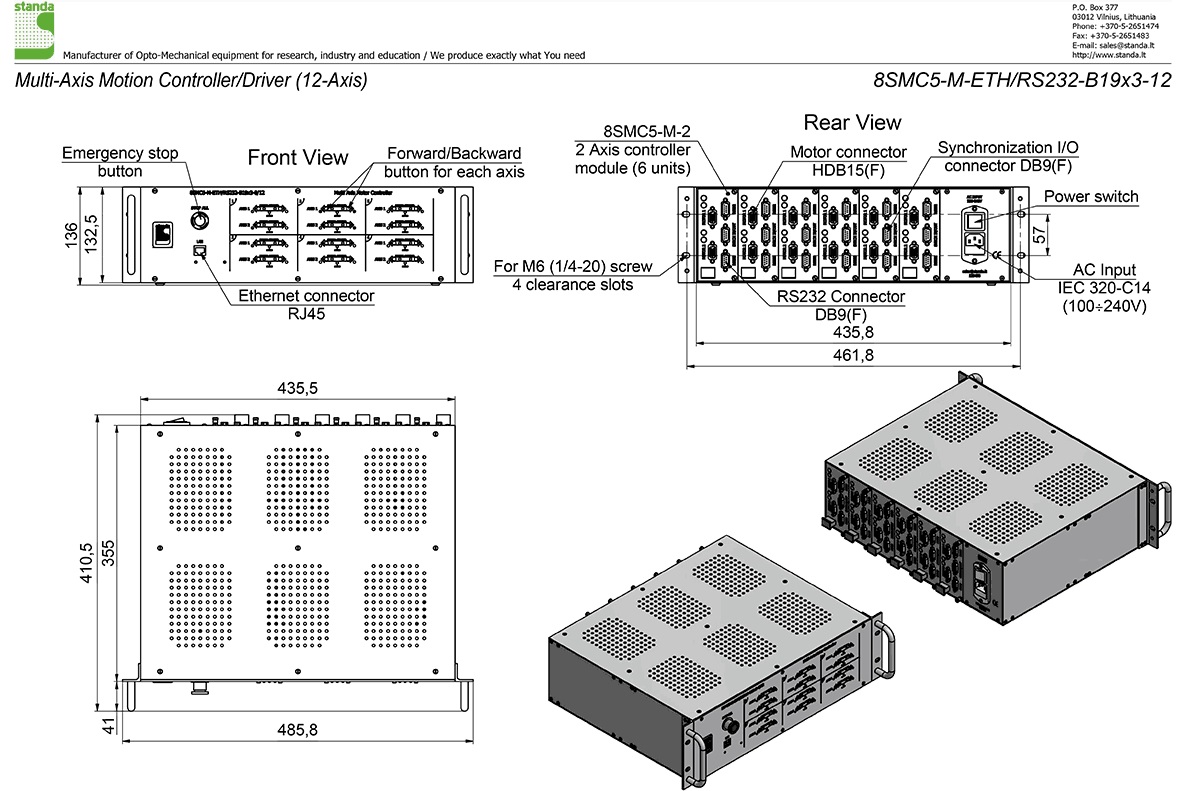

Maße483 x 398 x 143,3 mm
