8MBM57-6 - Motorisierter Optikpositionierer

1.336,00 € *

zzgl. MwSt. zzgl. Versandkosten

Lieferzeit ca. > 7 Tage

  • 644611639
  • 9031908590/LT
Motorisierter "Large Aperture" Spiegelhalter   Spezifikationen ... mehr
Produktinformationen "8MBM57-6 - Motorisierter Optikpositionierer"

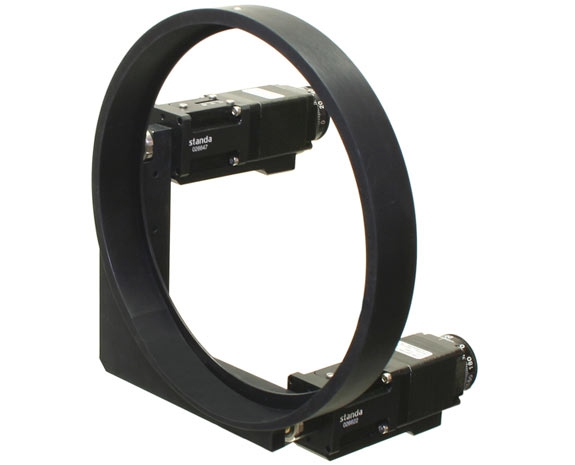

Motorisierter "Large Aperture" Spiegelhalter



Spezifikationen

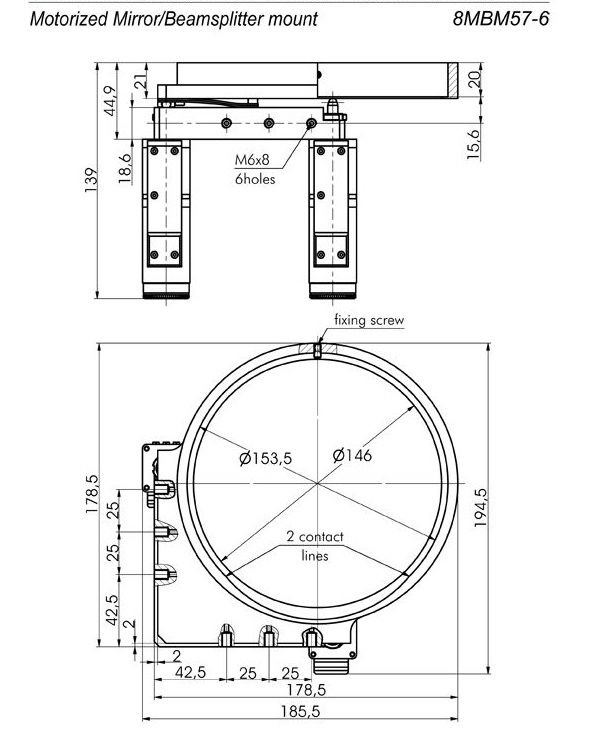

Model        8MBM57-6
For Optics, Ø6" (152.4mm)
Mount max. aperture, mm153.4
Clear aperture, mm146
Contact lines2
Angular range±2.5°
Resolution in full step, arcsec2.63
Lead screw pitch, mm0.25
Resolution in full step, µm3,31
Nominal force, N70
Motor connectorHDB15(M)
Installed actuators2 x 8CMA28-10
Optocoupler end limit switches2 per actuator
Switch polaritypushed is open
