8MBM57-4 - Motorisierter Optikpositionierer
- Artikel-Nr.: 644611637
- Warentarifnr.: 9031908590/LT
Motorisierter "Large Aperture" Spiegelhalter Specifications ... mehr
Produktinformationen "8MBM57-4 - Motorisierter Optikpositionierer"

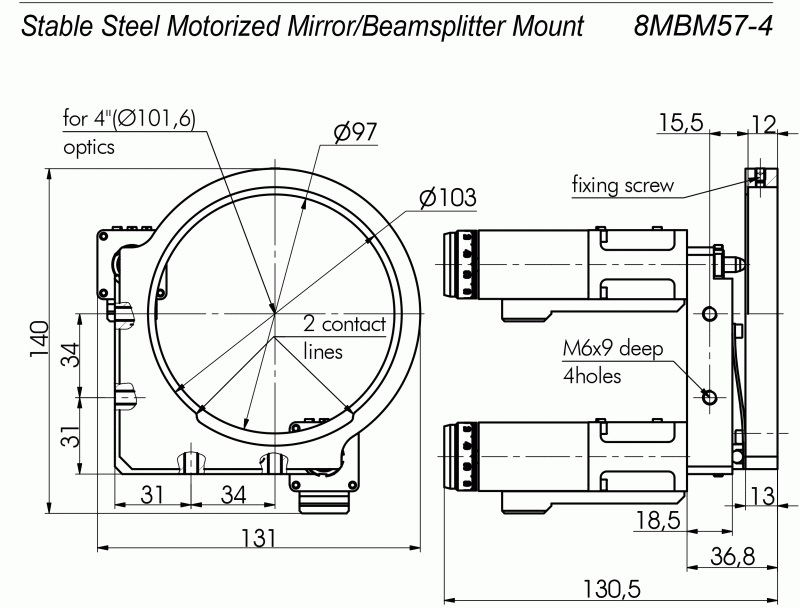

Motorisierter "Large Aperture" Spiegelhalter
Specifications
Model | 8MBM57-4 | |||
For Optics, Ø | 4" (101,6mm) | |||
Mount max. aperture, mm | 103 | |||
Clear aperture, mm | 97 | |||
Contact lines | 2 | |||
Angular range | ±3° | |||
Resolution in full step, arcsec | 3,31 | |||
Lead screw pitch, mm | 0.25 | |||
Resolution in full step, µm | 3,31 | |||
Nominal force, N | 70 | |||
Motor connector | HDB15(M) | |||
Installed actuators | 2 x 8CMA28-10 | |||
Optocoupler end limit switches | 2 per actuator | |||
Switch polarity | pushed is open |
