8MTL1301-170-LEn1-100 - Motorisierter Lineartisch

Preis auf Anfrage



  • 644619956
  • RoHS konform
  • 9031908590/LT
Motorisierter Lineartisch mit Direktantrieb Interpolation: x100 . Kinematics & Feedback... mehr
Produktinformationen "8MTL1301-170-LEn1-100 - Motorisierter Lineartisch"

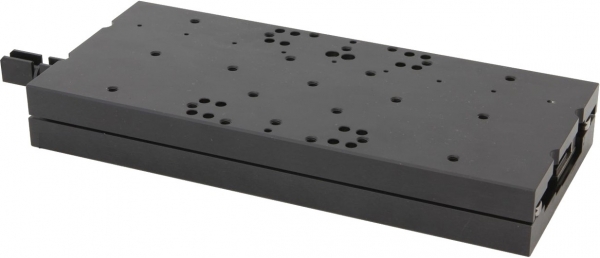

Motorisierter Lineartisch mit Direktantrieb


Interpolation: x100 .

Kinematics & Feedback information
Travel range: 170 mm
Encoder type: non-contact

Optical Encoder
Encoder model: LEn1
Encoder resolution: 100 nm
Reference mark: in the center of travel
Bidirectional repeatability: ±0.5 µm
Unidirectional repeatability: on request

Accuracy: calibrated: ±1 µm
Pitch: ±55 µrad
Yaw: ±32 µrad
Roll: on request
Maximal speed (not loaded): 1.2 m/s

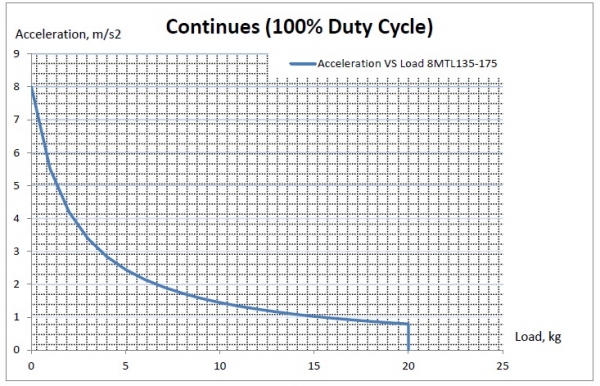

Maximum acceleration (not loaded): 1.45 g
Limit Switches: hall sensors
Switch polarity: pushed is closed

Load & Transmission information
Continues force (peak): 113.5 N
Load capacity (central): 20 kg
Linear motor model: LM1
Motor: 3 Phase BLDC linear servo motor
Maximum Bus Voltage: >300 VDC
Continues Current: 2.2 A
Peak current: 8.8 A

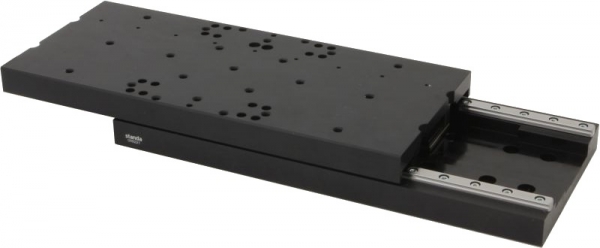

Guiding system: recirculating linear rails and carriages

Material
Base material: Aluminum alloy
Finish: Black anodizing

Accessories Information
Base plate: not necessary
XY configuration: direct
Z configuration: available

Additional Details
Moving platform dimensions: 130 mm x 295 mm
Measurement system: Metric
Weight: 4.1 kg
Moving mass: 2.1 kg
